This section contains some of the Service Managers Information sheets notifying the dealers of changes in the production car that may have to be implemented retrospectively to older cars.

There were a large number of these for Cortinas in general, but I’m sure there may be more than this for Lotus Cortinas specifically. Please get in touch if you have any others you wish to share.

Service Managers Information

Service Literature (15th Aug ’63)

Brakes (15th Oct ’63)

Product Improvements (13th Jan ’64)

Service Literature (13th Apr ’64)

Rear Suspension (5th Oct ’64)

Service Literature (8th Dec ’64)

Coil HT Lead Re-Routing (13th Jan ’65)

Carburettor T Piece (11th Feb ’65)

Carburettor Flange Gasket (6th Apr ’65)

Chassis Suspension Mountings Distorting (15th Dec ’65)

660107 Rear Axle Oil Leak (7th Jan ’66)

Chassis Suspension Mountings Distorting (11th Jan ’66)

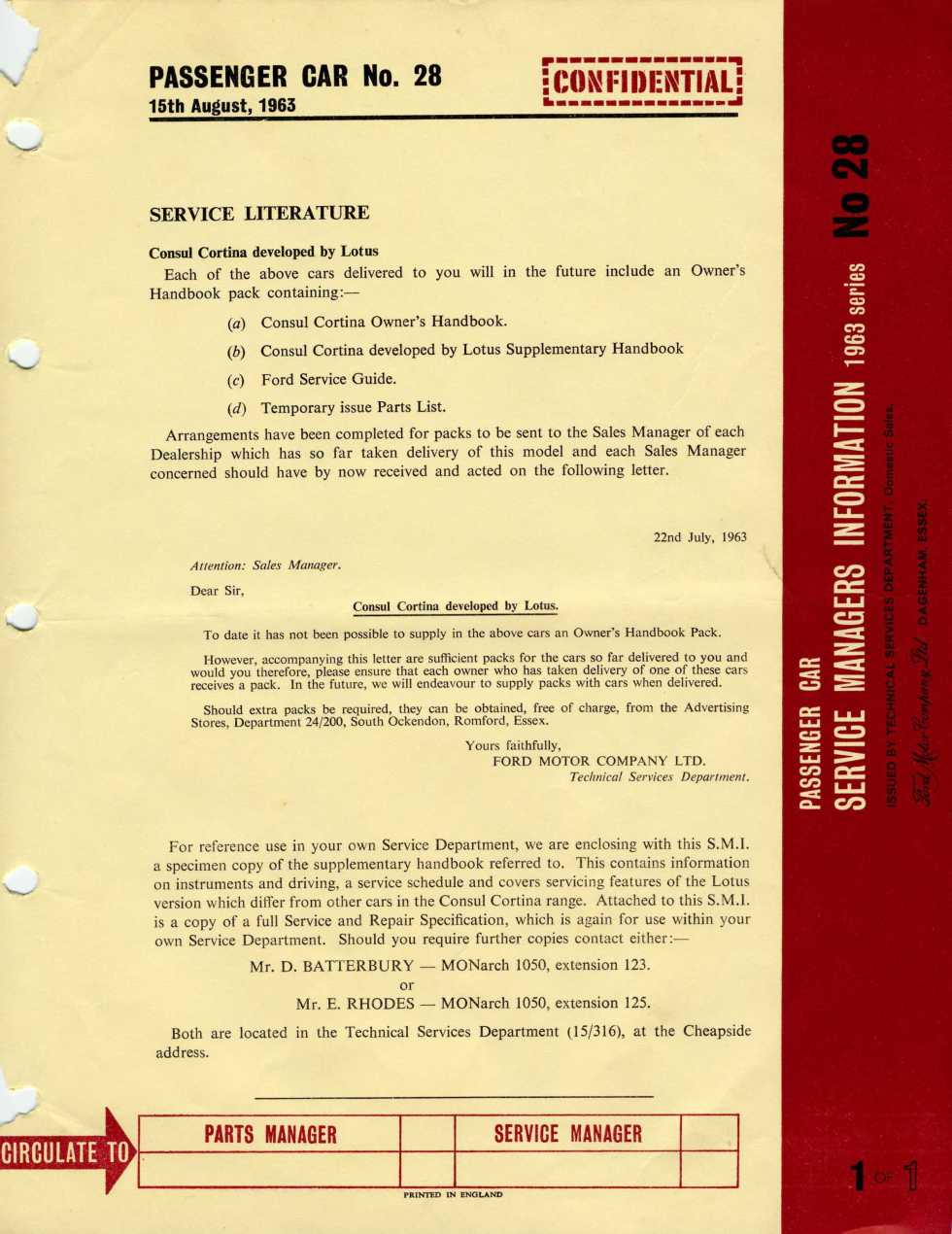

Service Literature (15th Aug ’63)

630815-service-literature

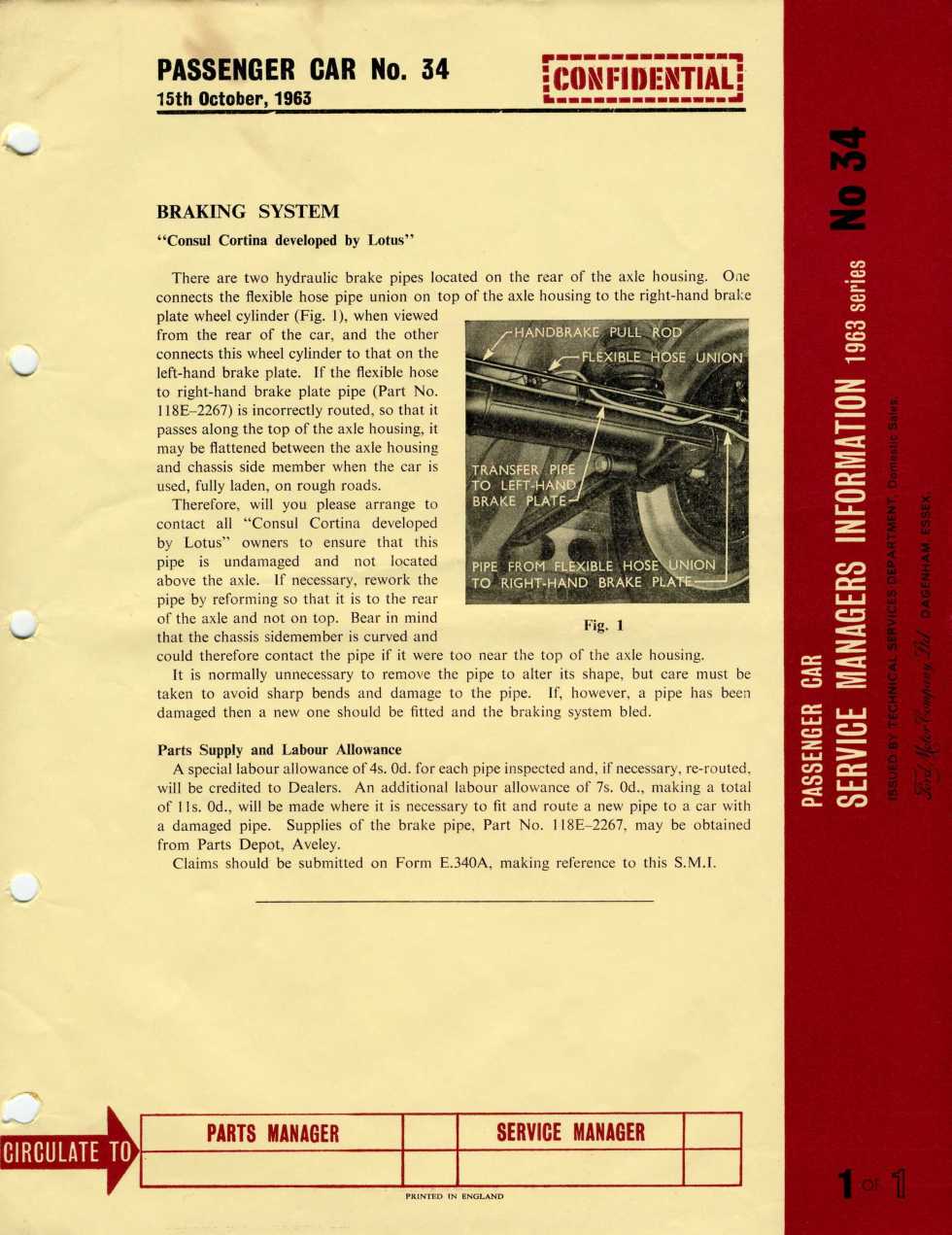

Braking System (15th Oct ’63)

631015-brakes

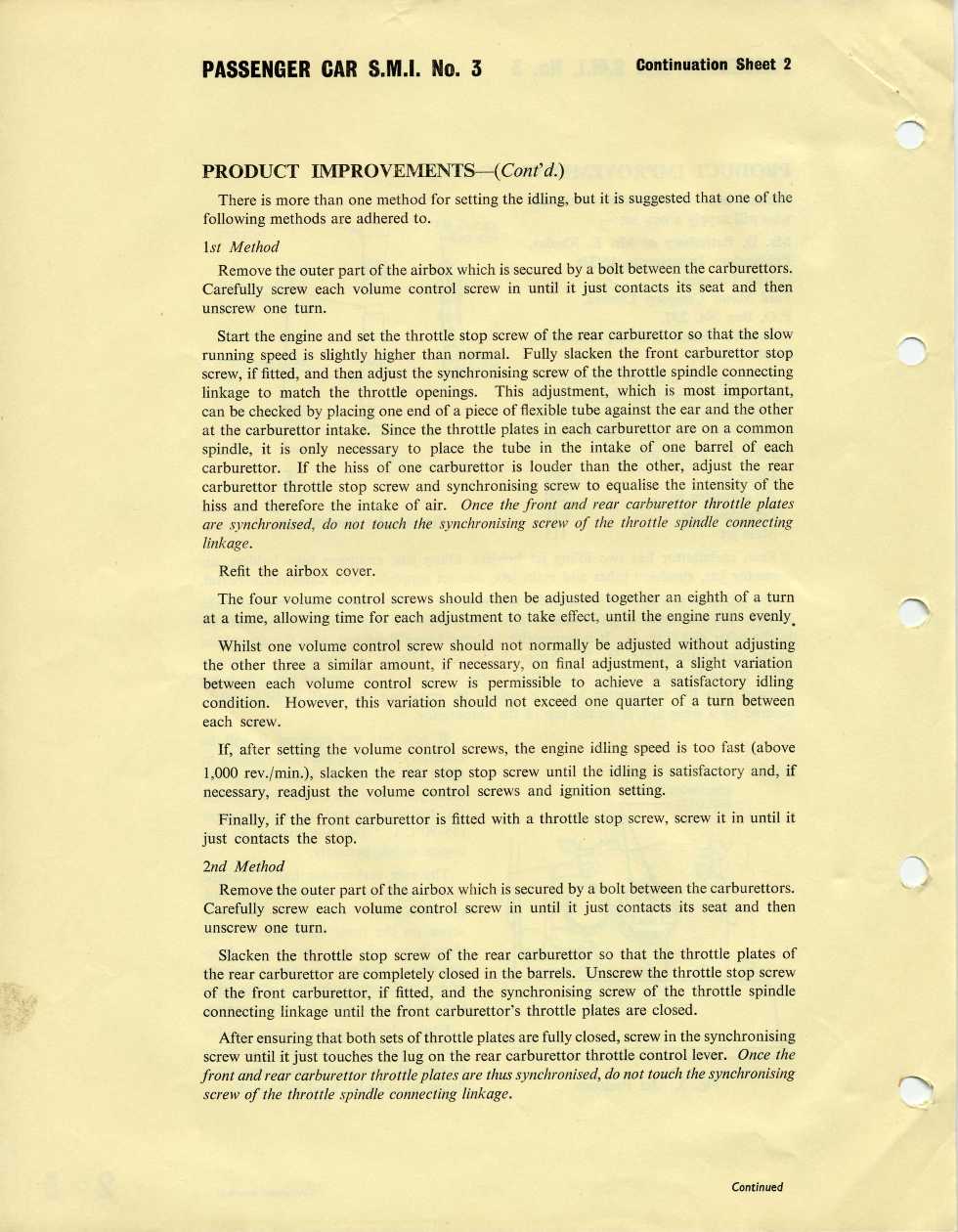

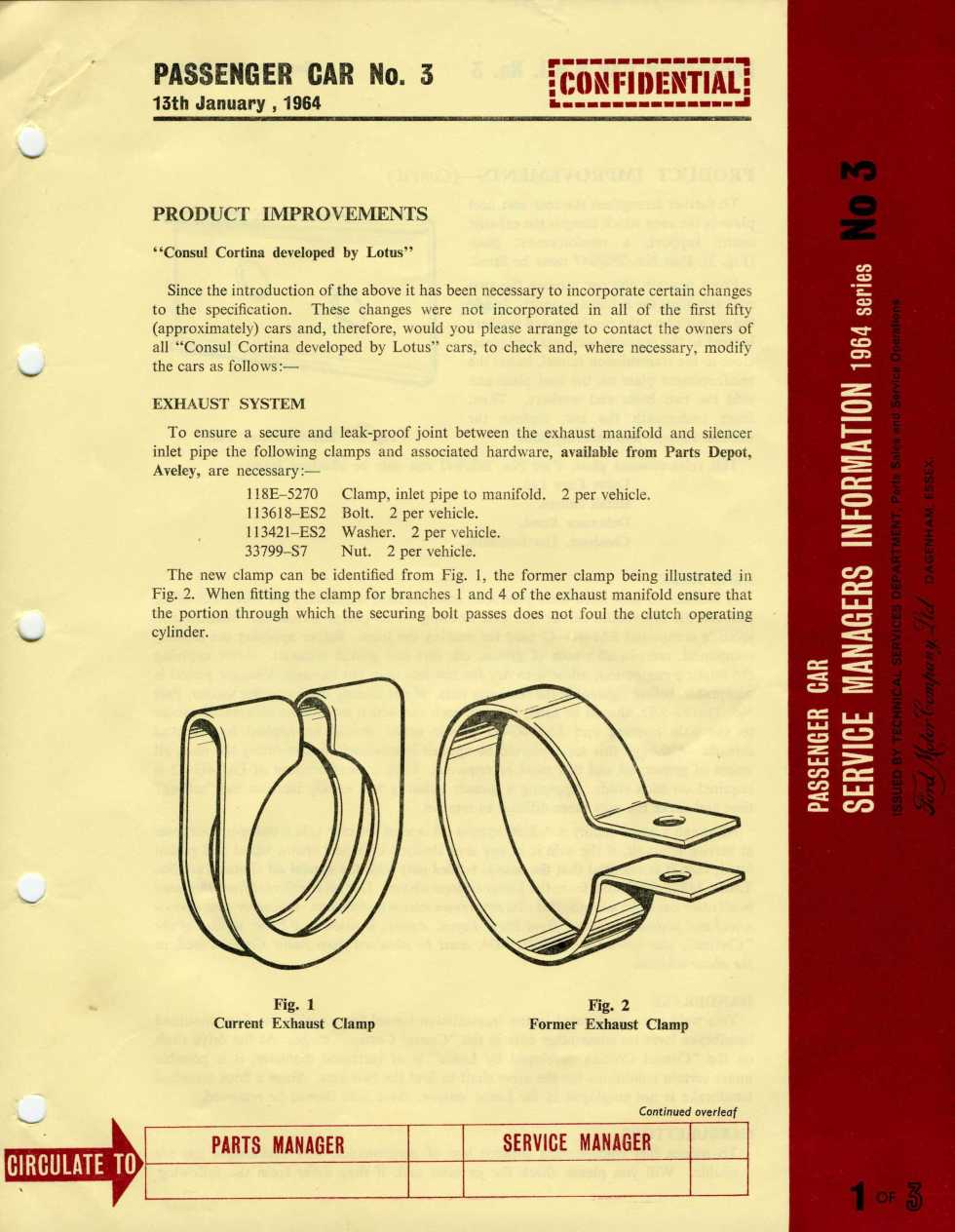

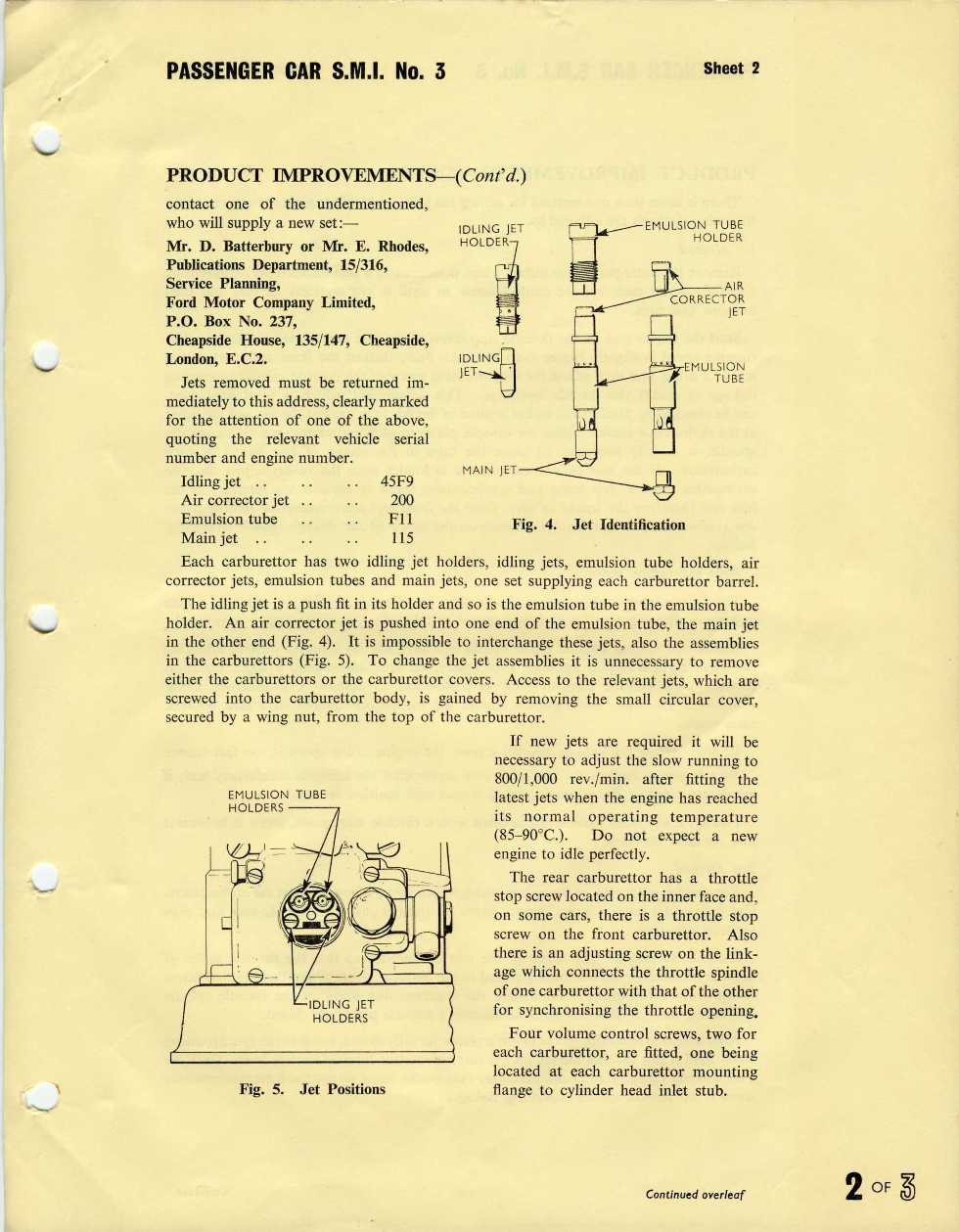

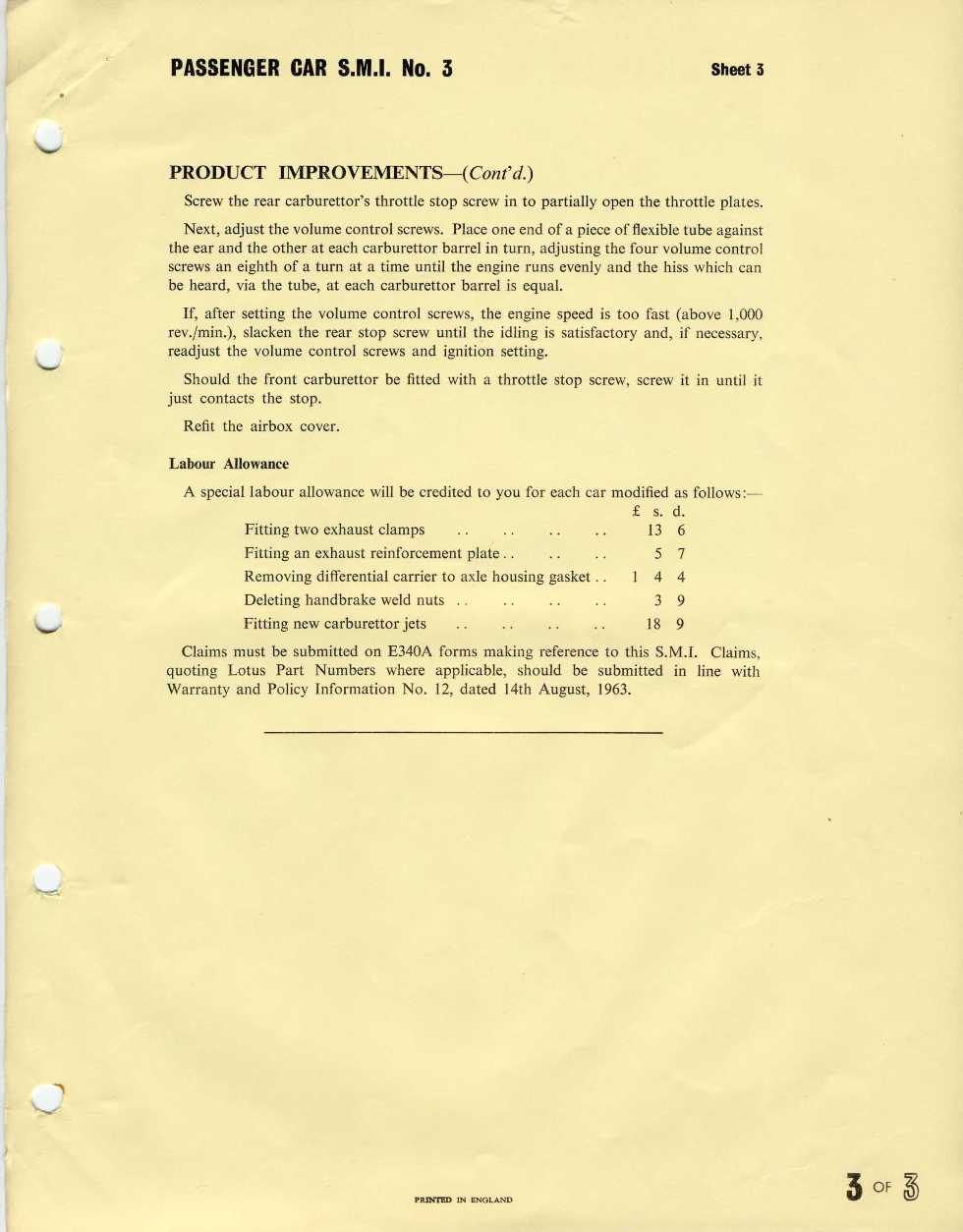

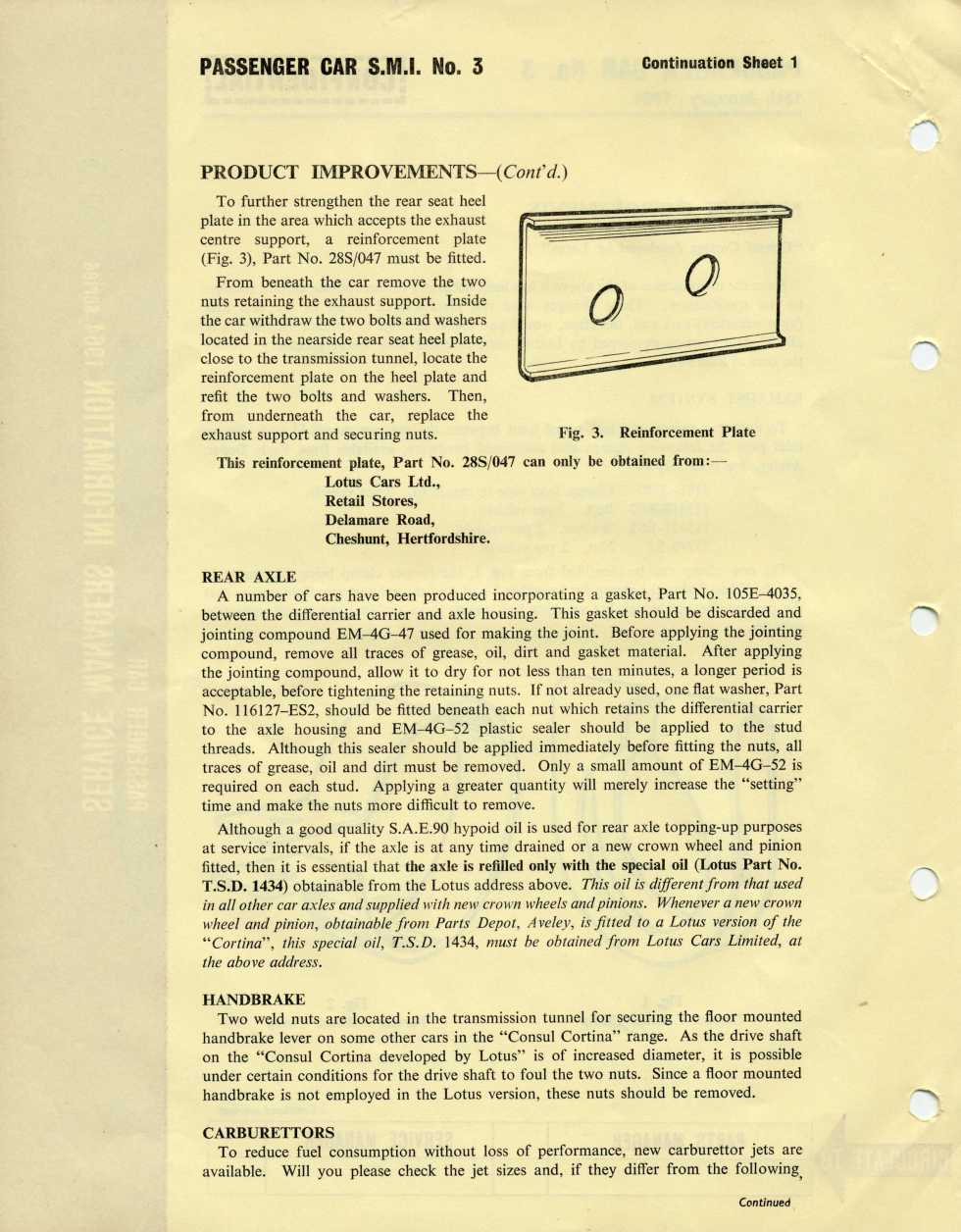

Product Improvements (13th Jan ’64)

640113-exhaust-diff-handbrake-carbs-1

640113-exhaust-diff-handbrake-carbs-2

640113-exhaust-diff-handbrake-carbs-3

640113-exhaust-diff-handbrake-carbs-4

640113-exhaust-diff-handbrake-carbs-5

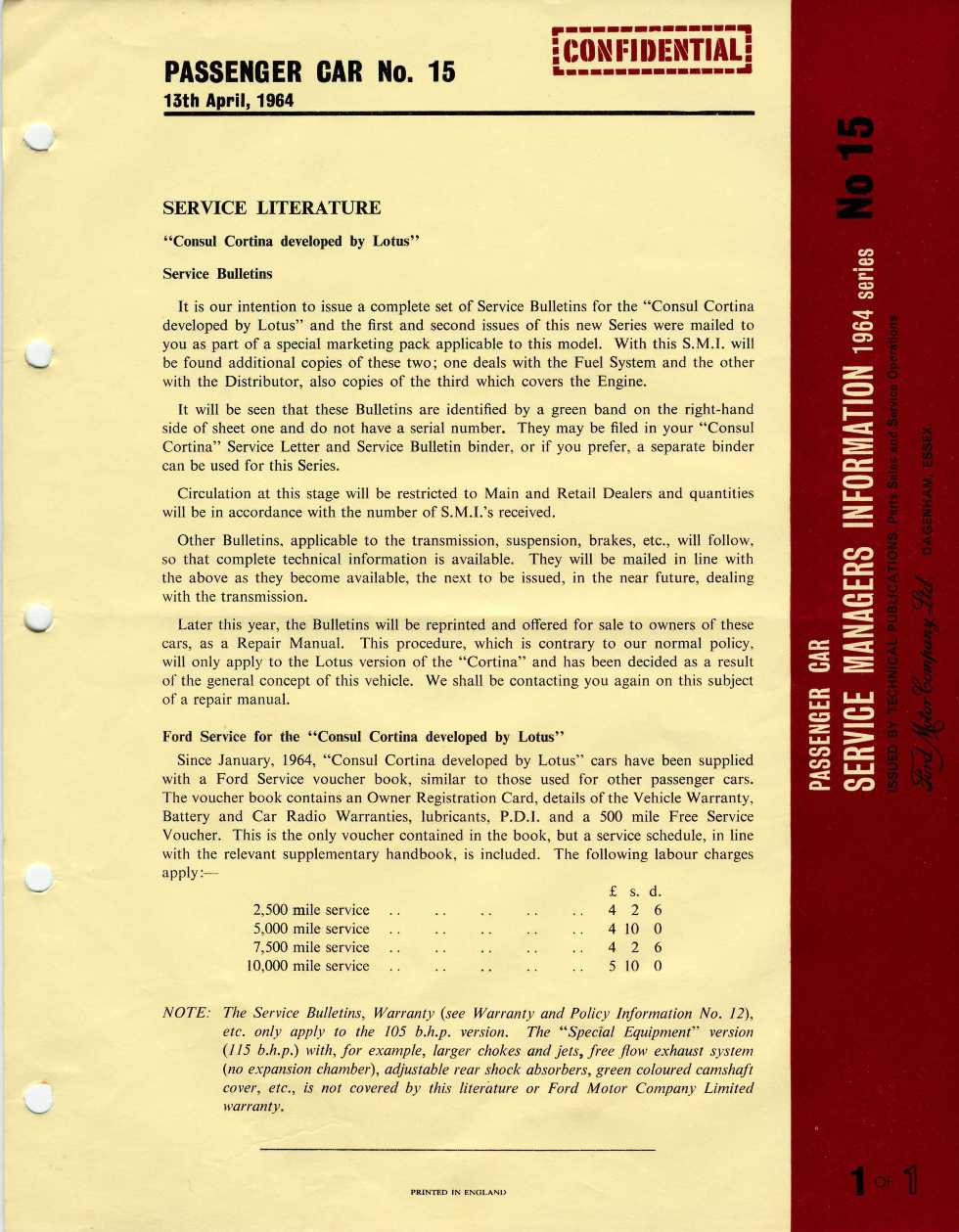

Service Literature (13th Apr ’64)

640413-service-literiture

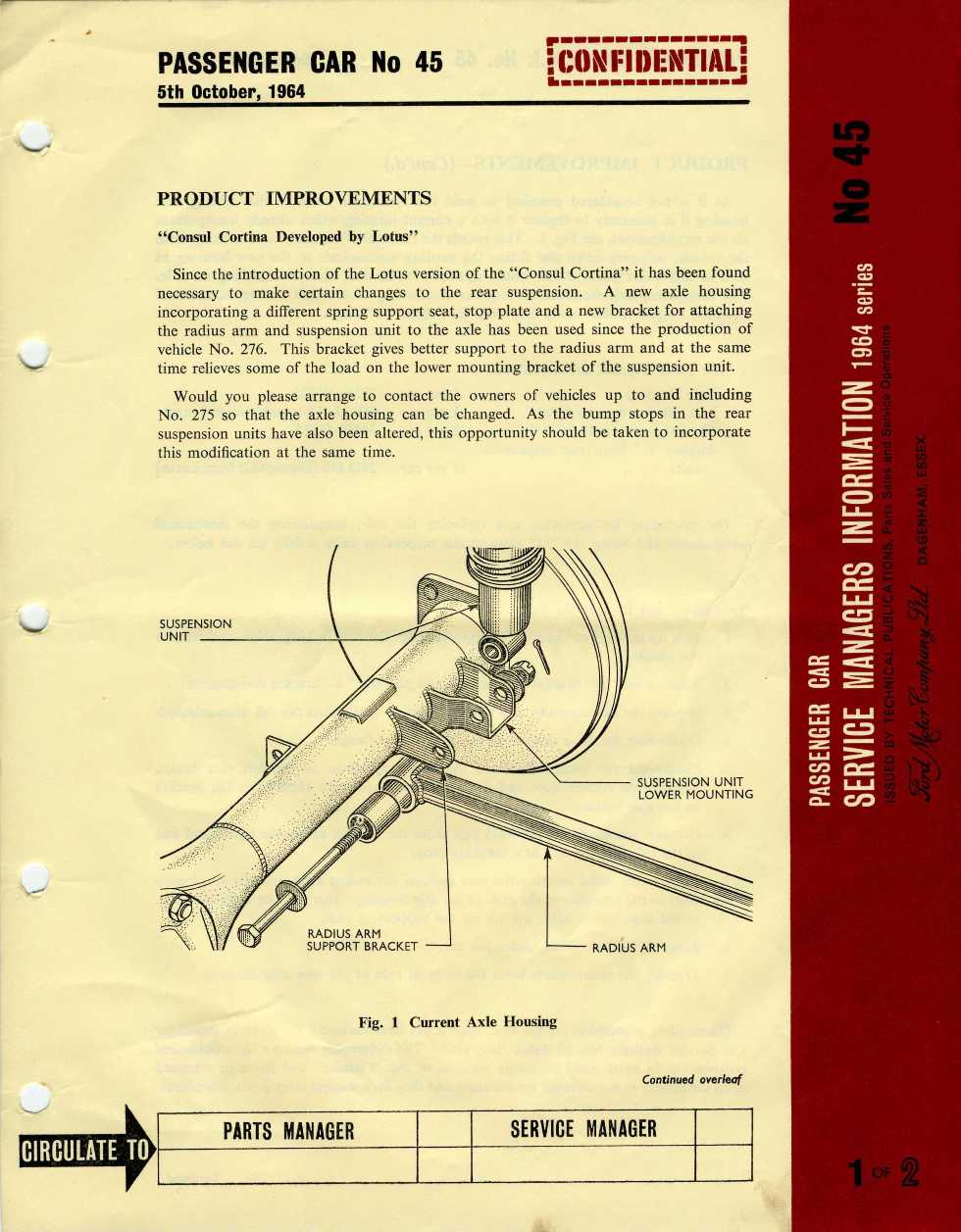

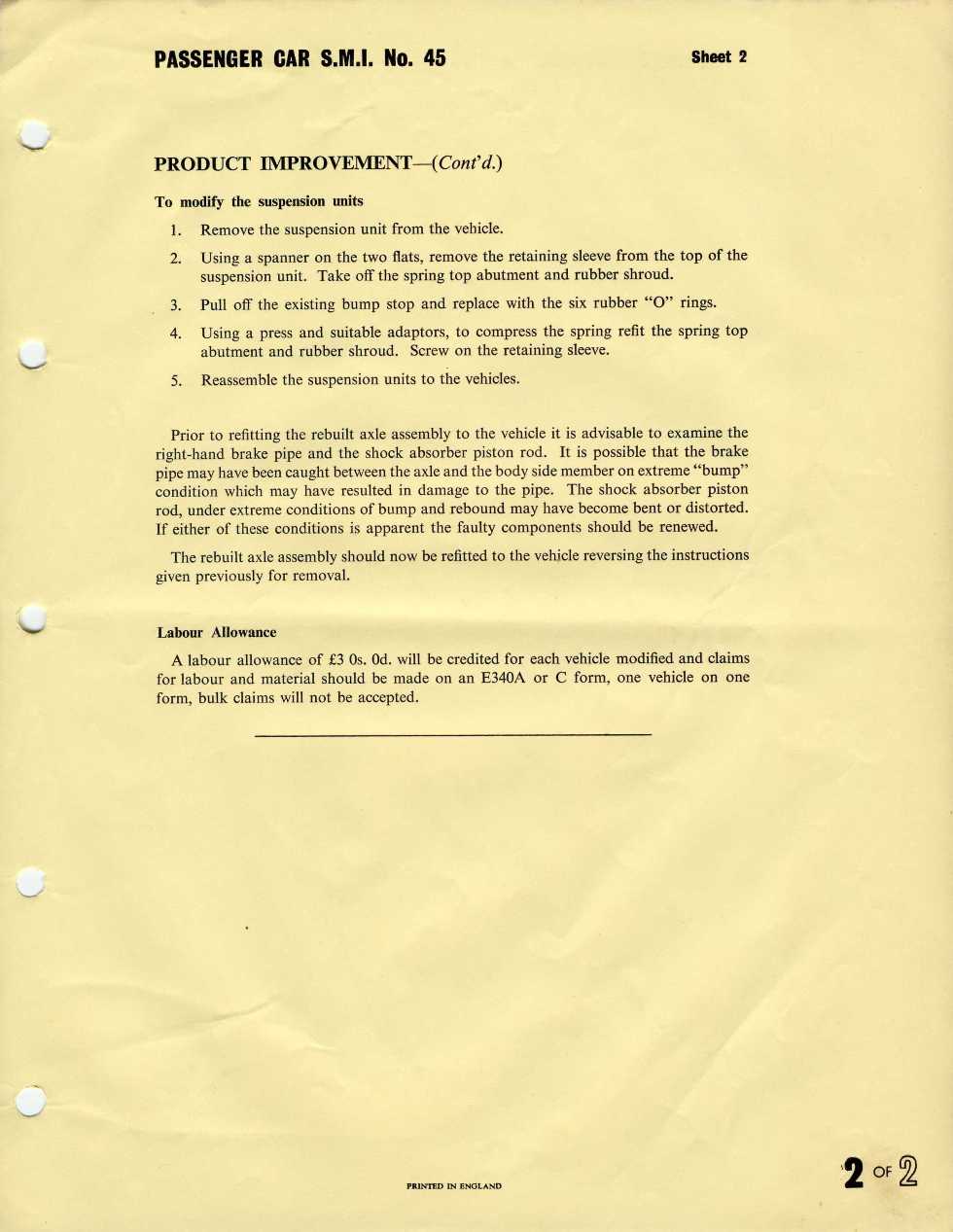

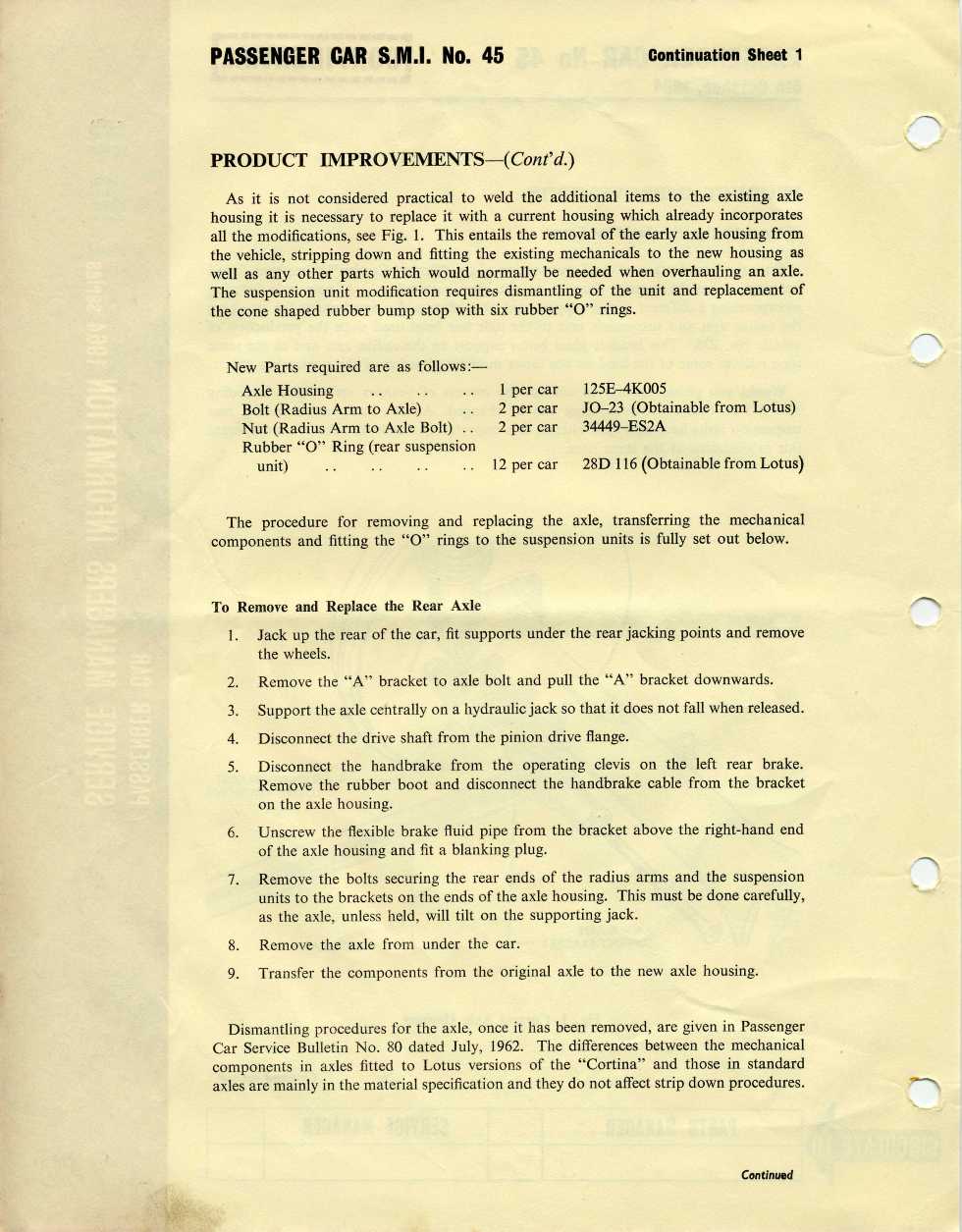

Rear Suspension (5th Oct ’64)

641005-rear-suspension-1

641005-rear-suspension-2

641005-rear-suspension-3

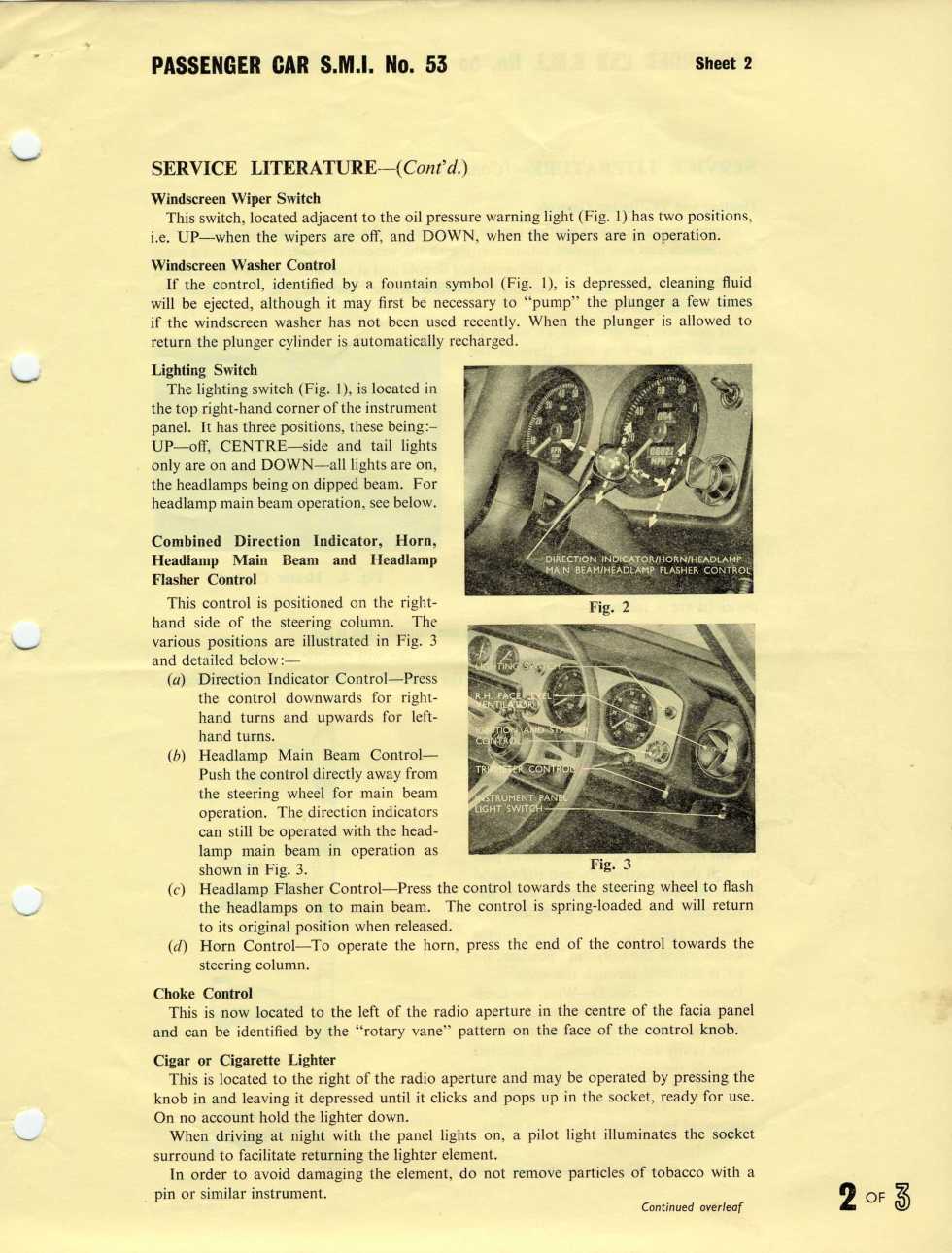

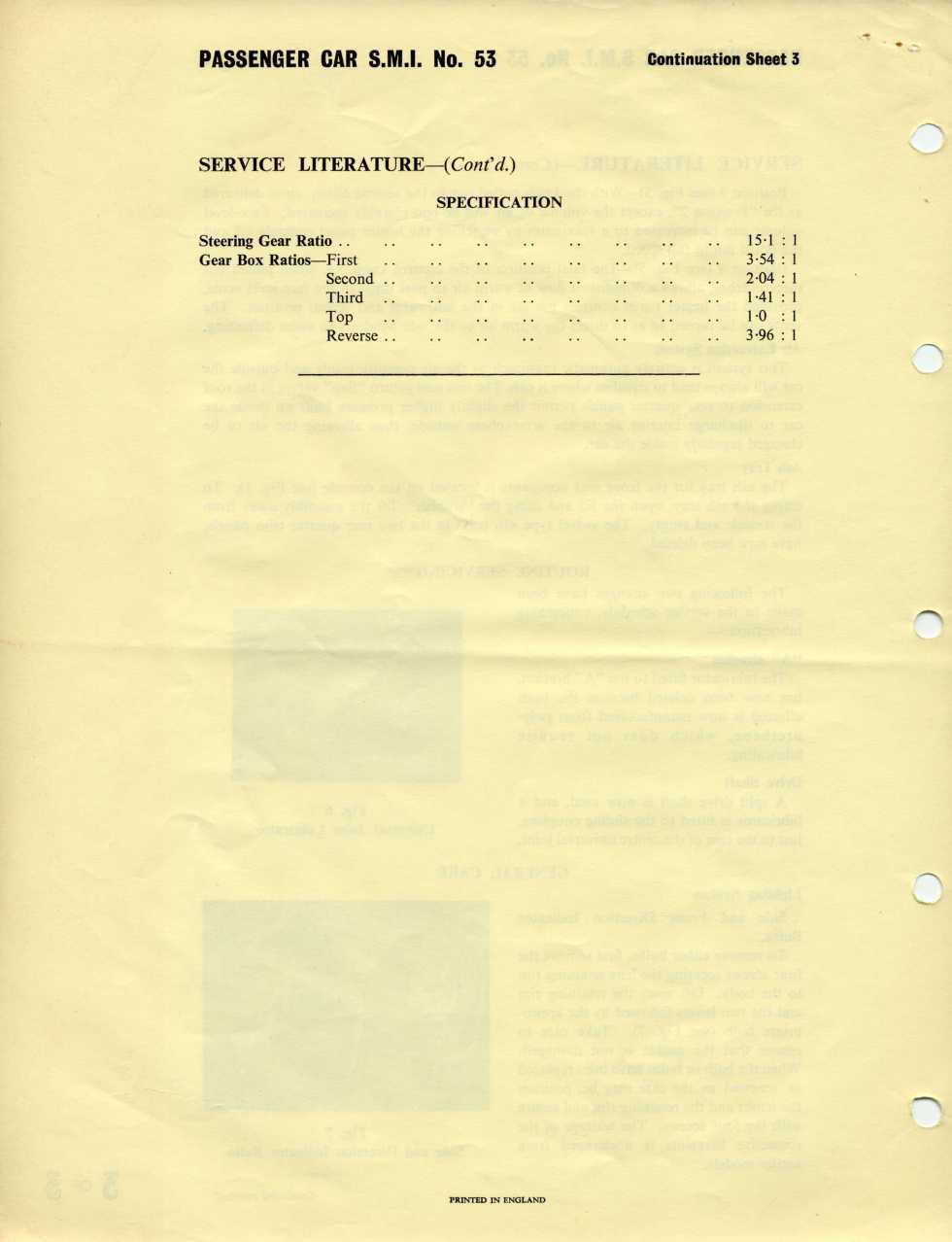

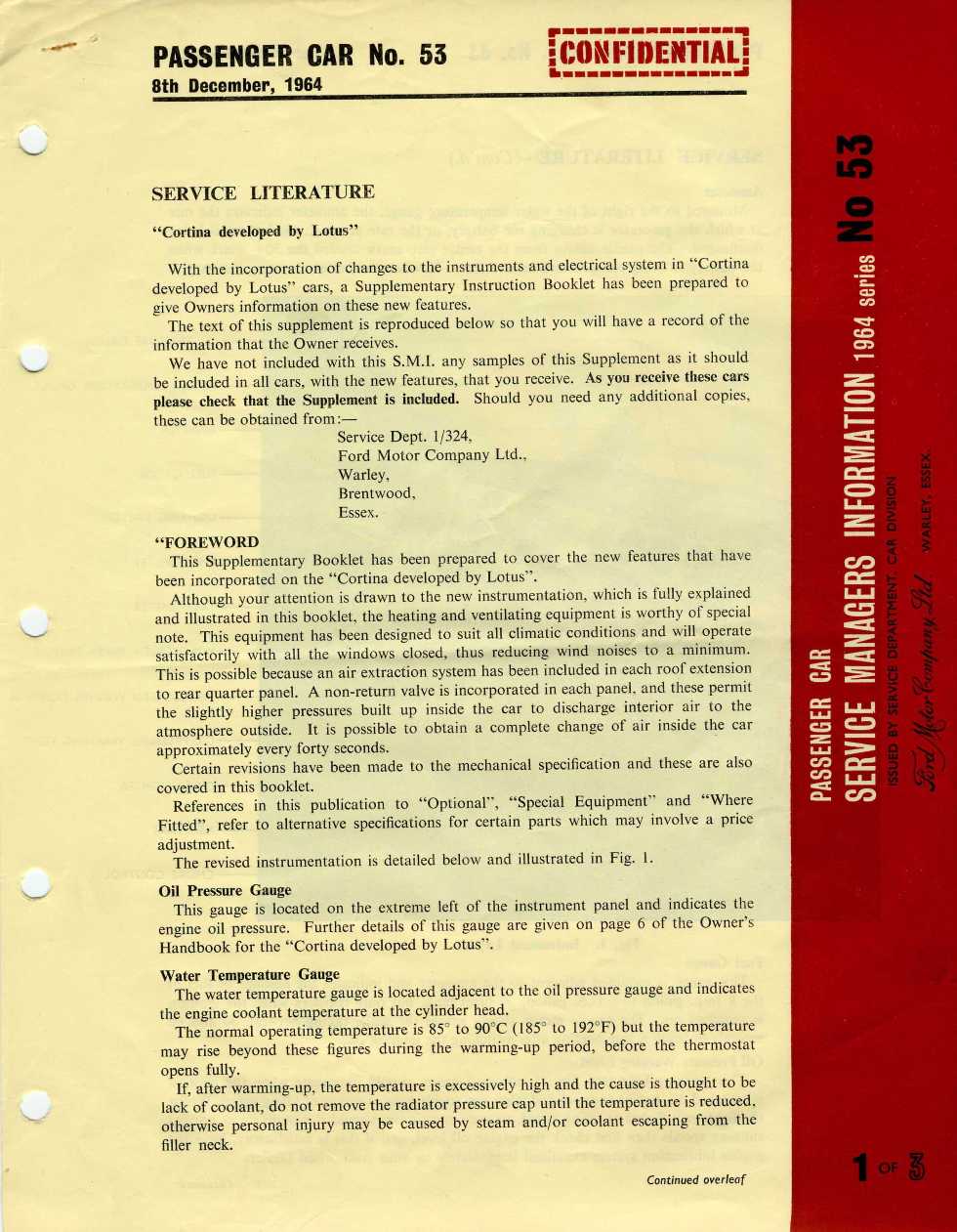

Service Literature (8th Dec ’64)

641208-service-literature-1

641208-service-literature-2

641208-service-literature-3

641208-service-literature-4

641208-service-literature-5

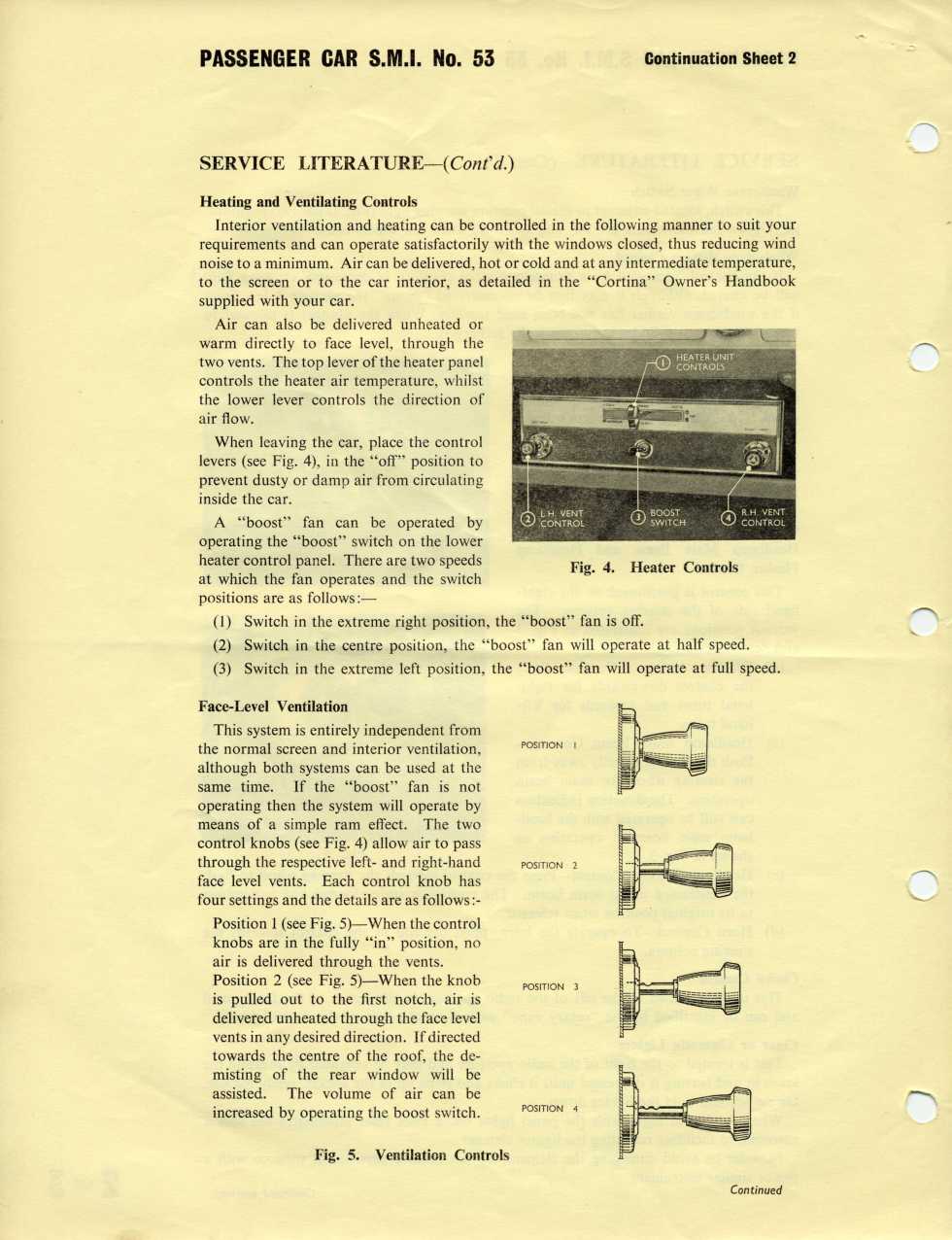

641208-service-literature-6

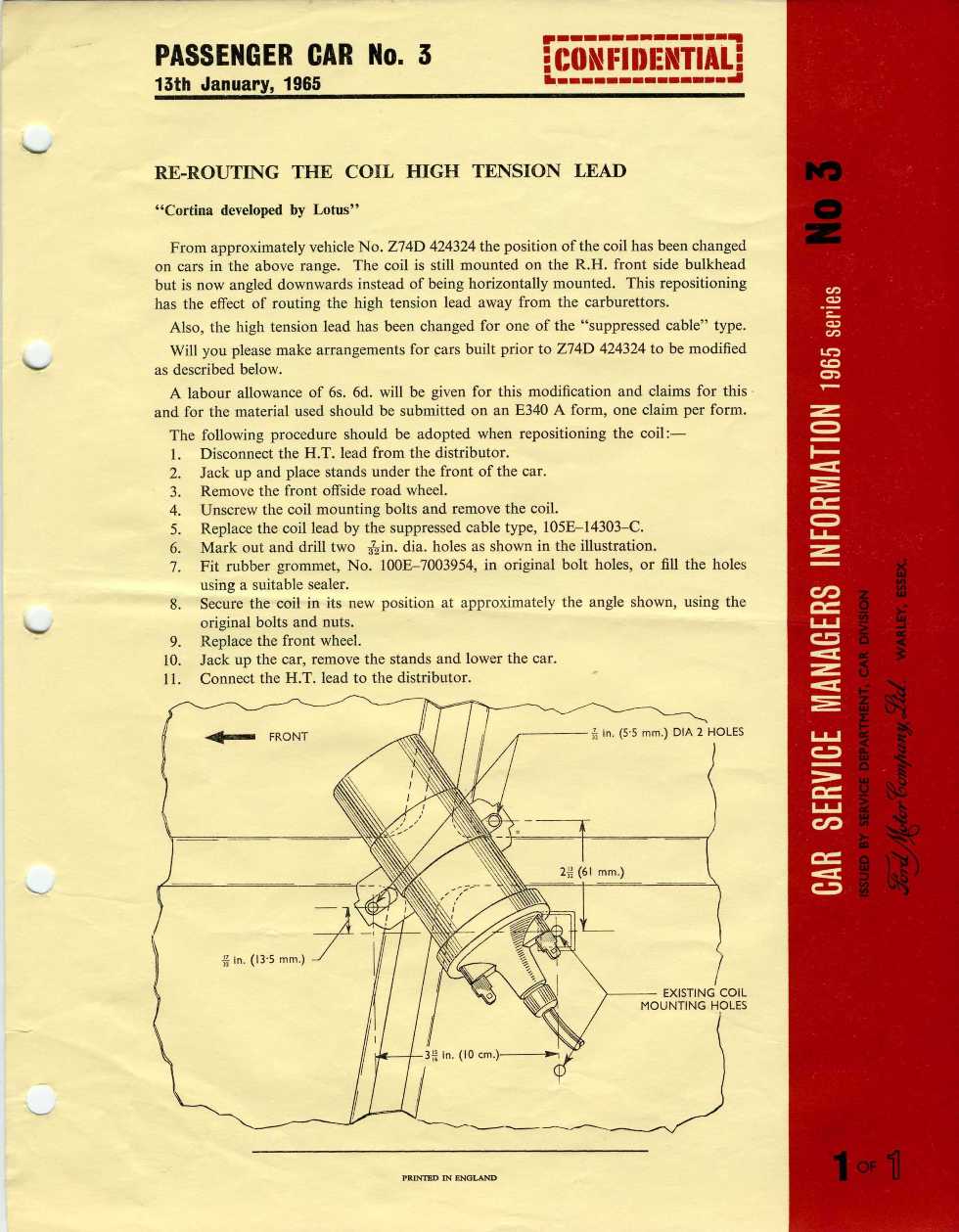

Coil HT Lead Re-Routing (13th Jan ’65)

650113-coil-ht-lead-re-routing

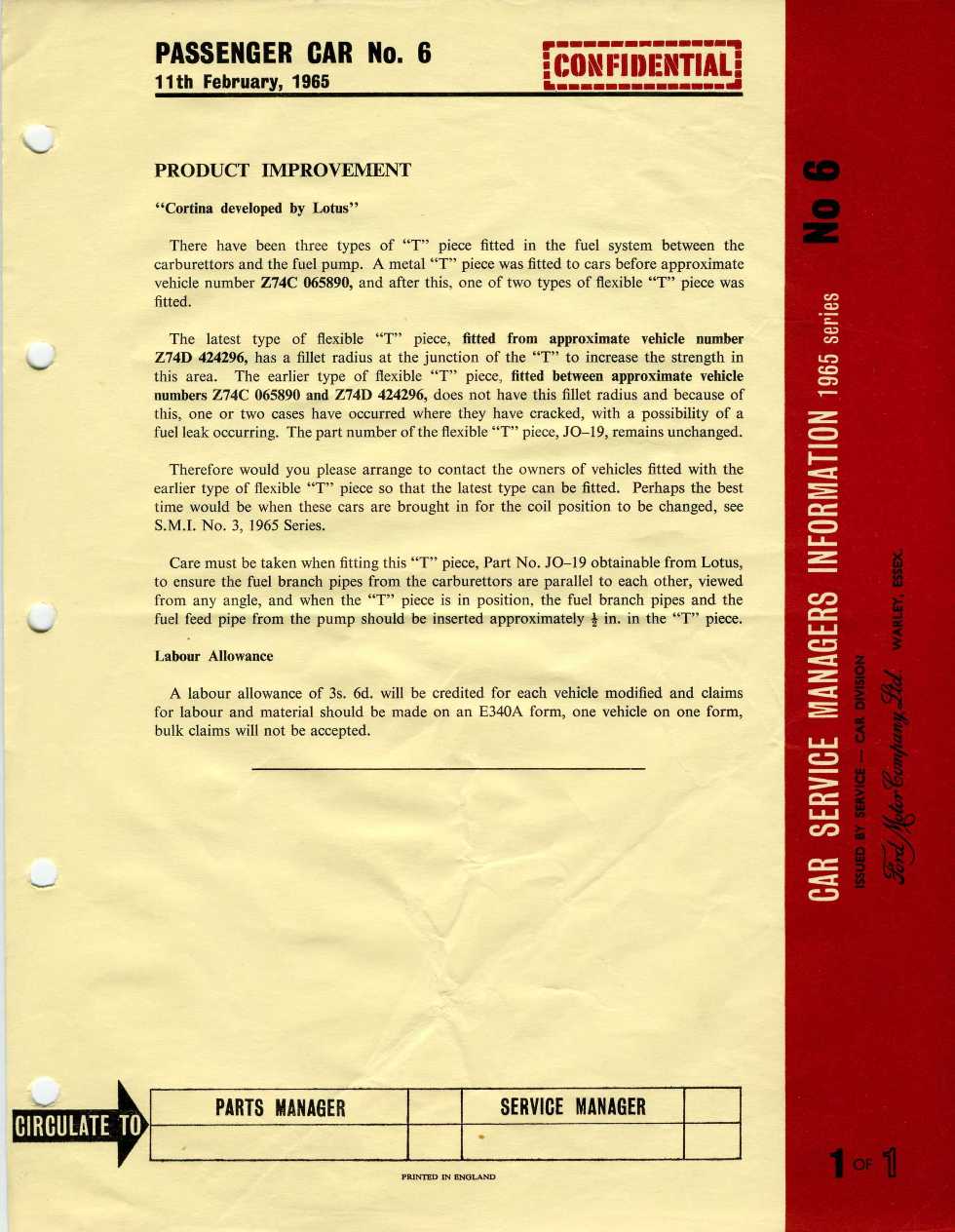

Carburettor T Piece (11th Feb ’65)

650211-carburettor-t-piece

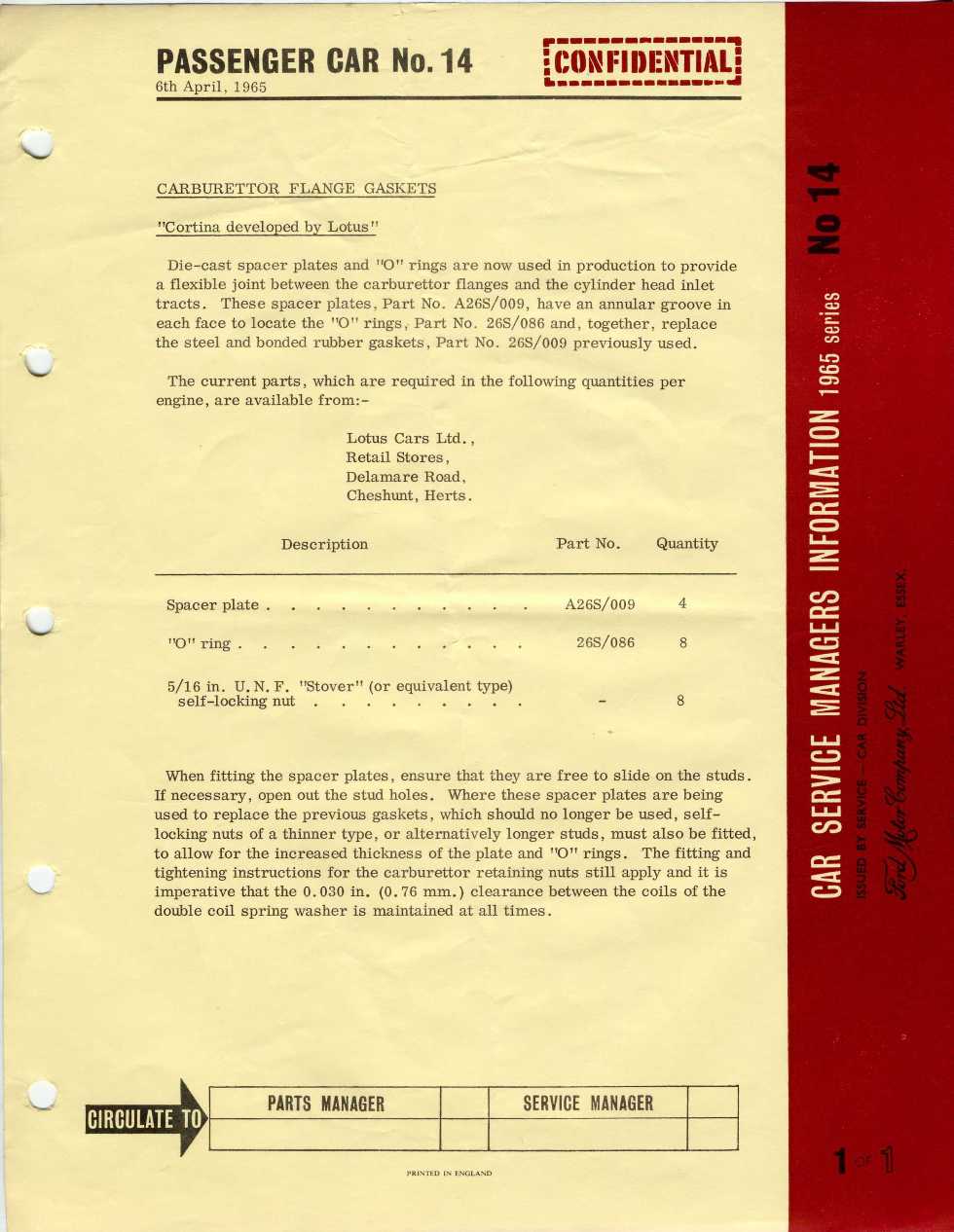

Carburettor Flange Gasket (6th Apr ’65)

650406-carbuettor-flange-gasket

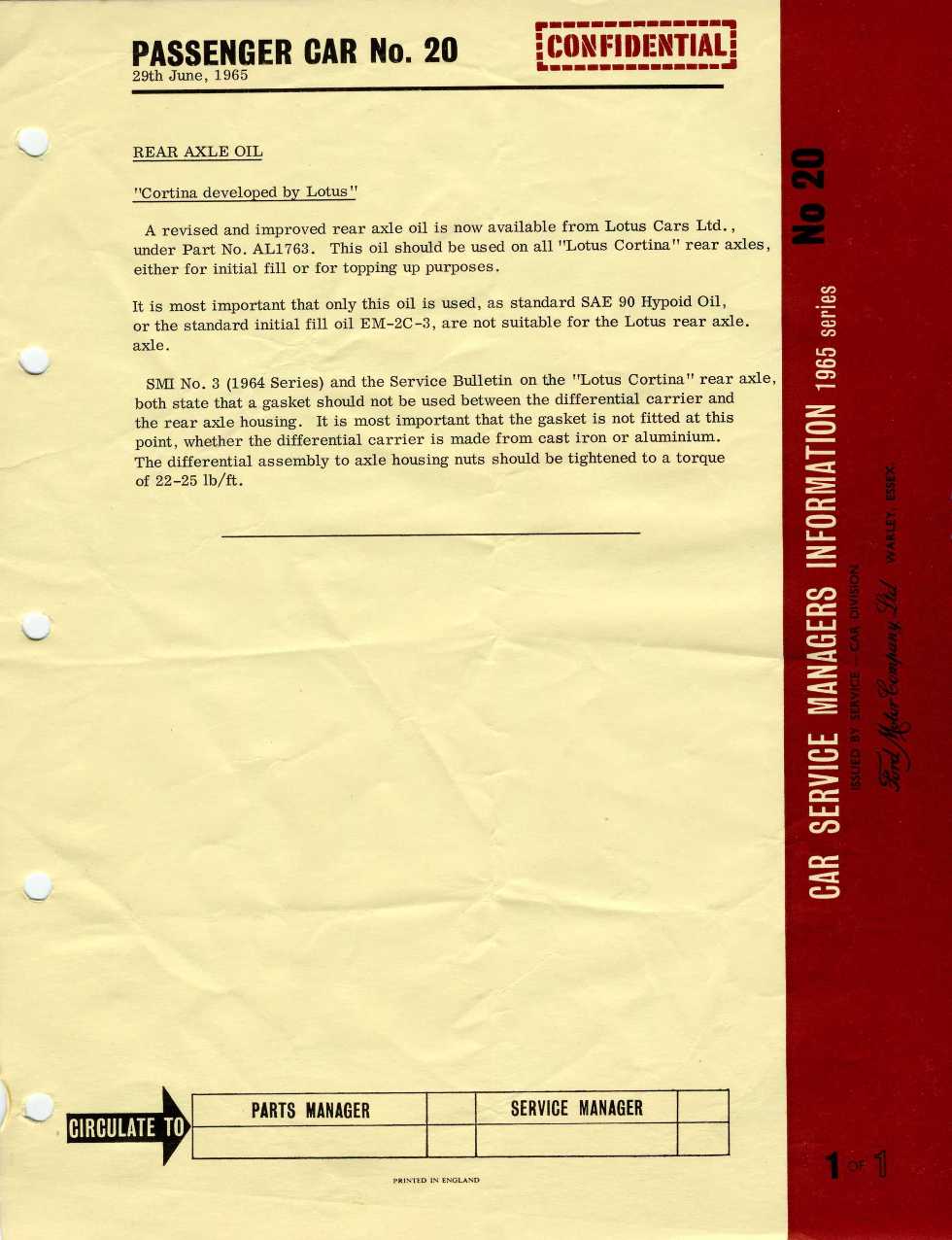

Axle Oil (29th Jun ’65)

650629-axle-oil

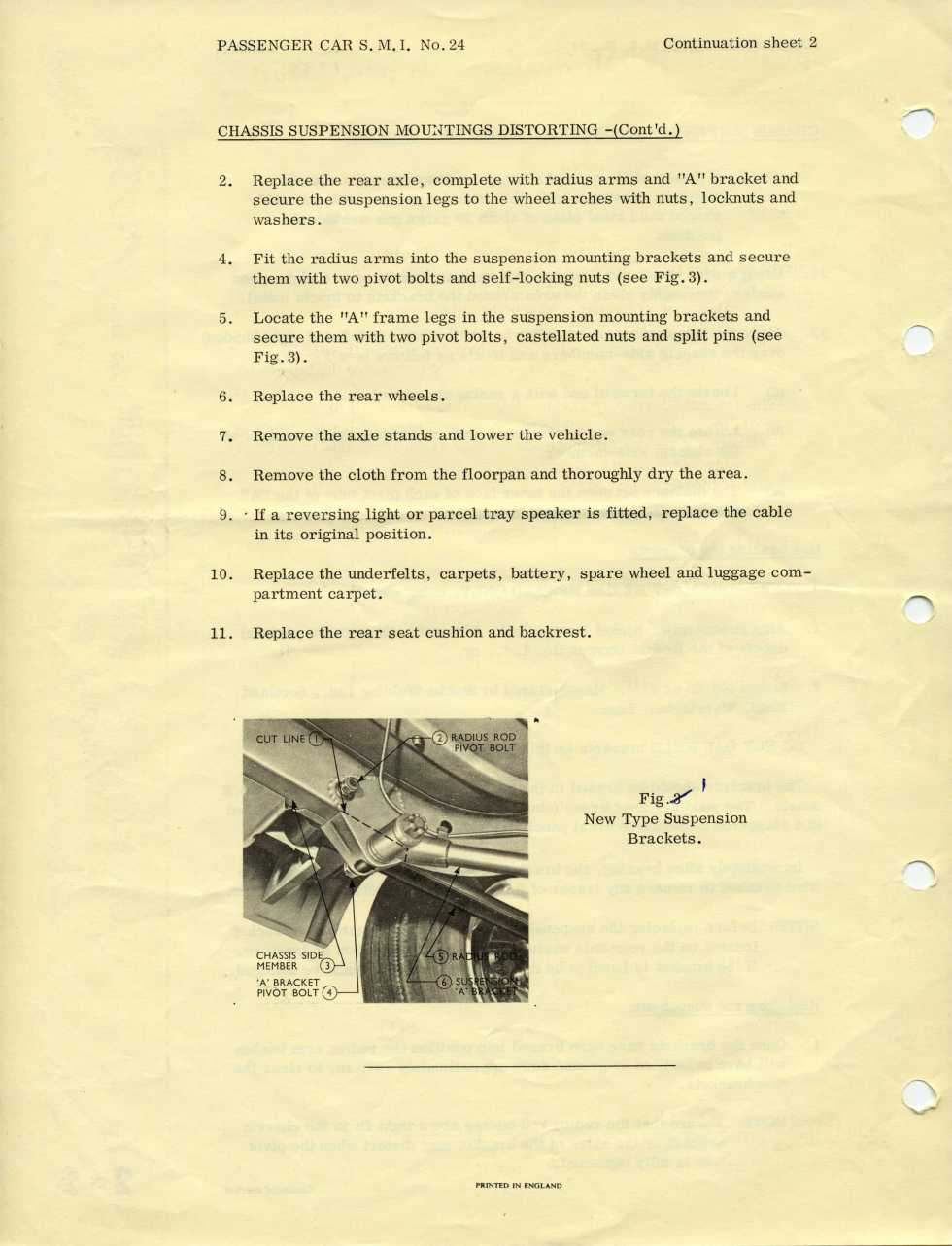

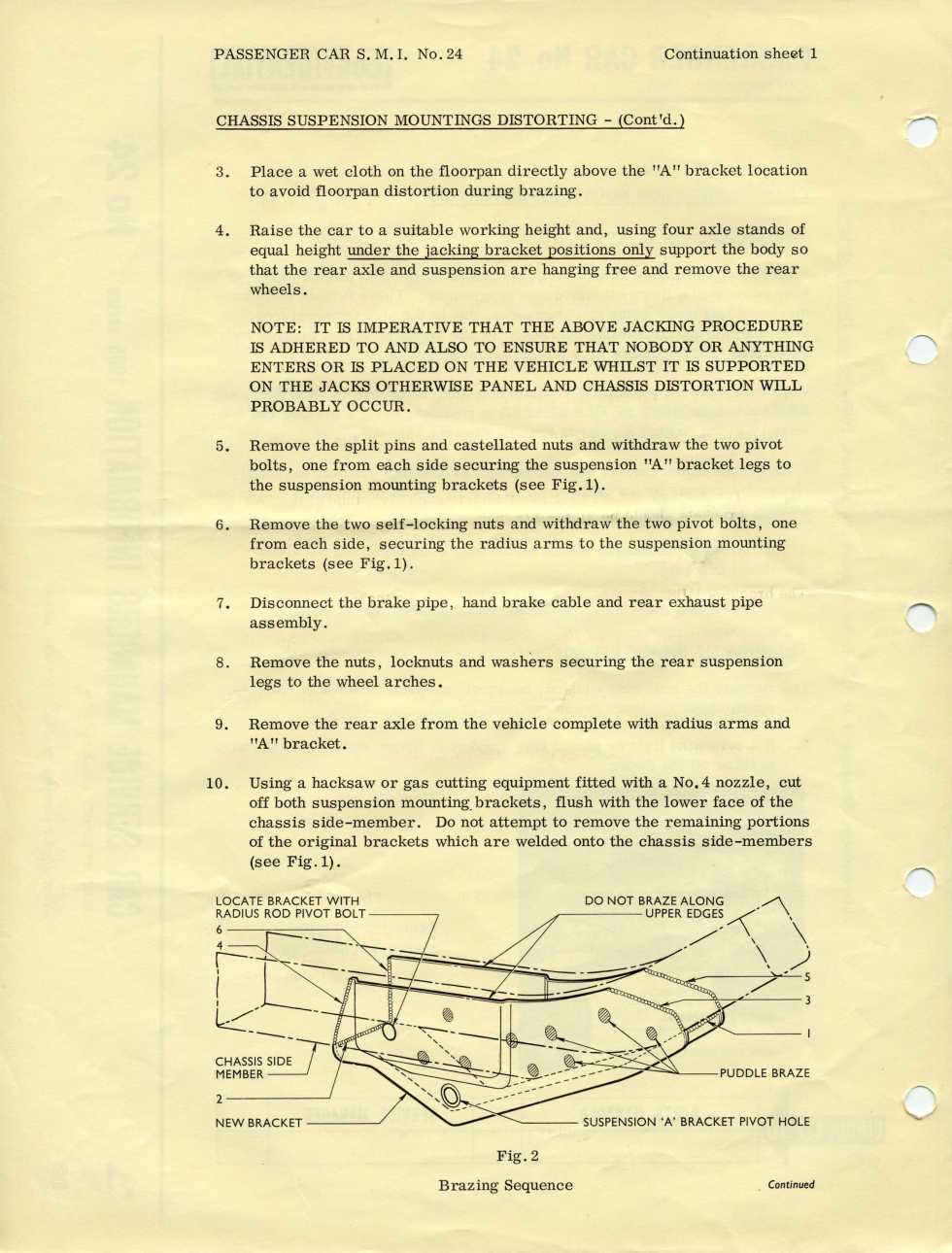

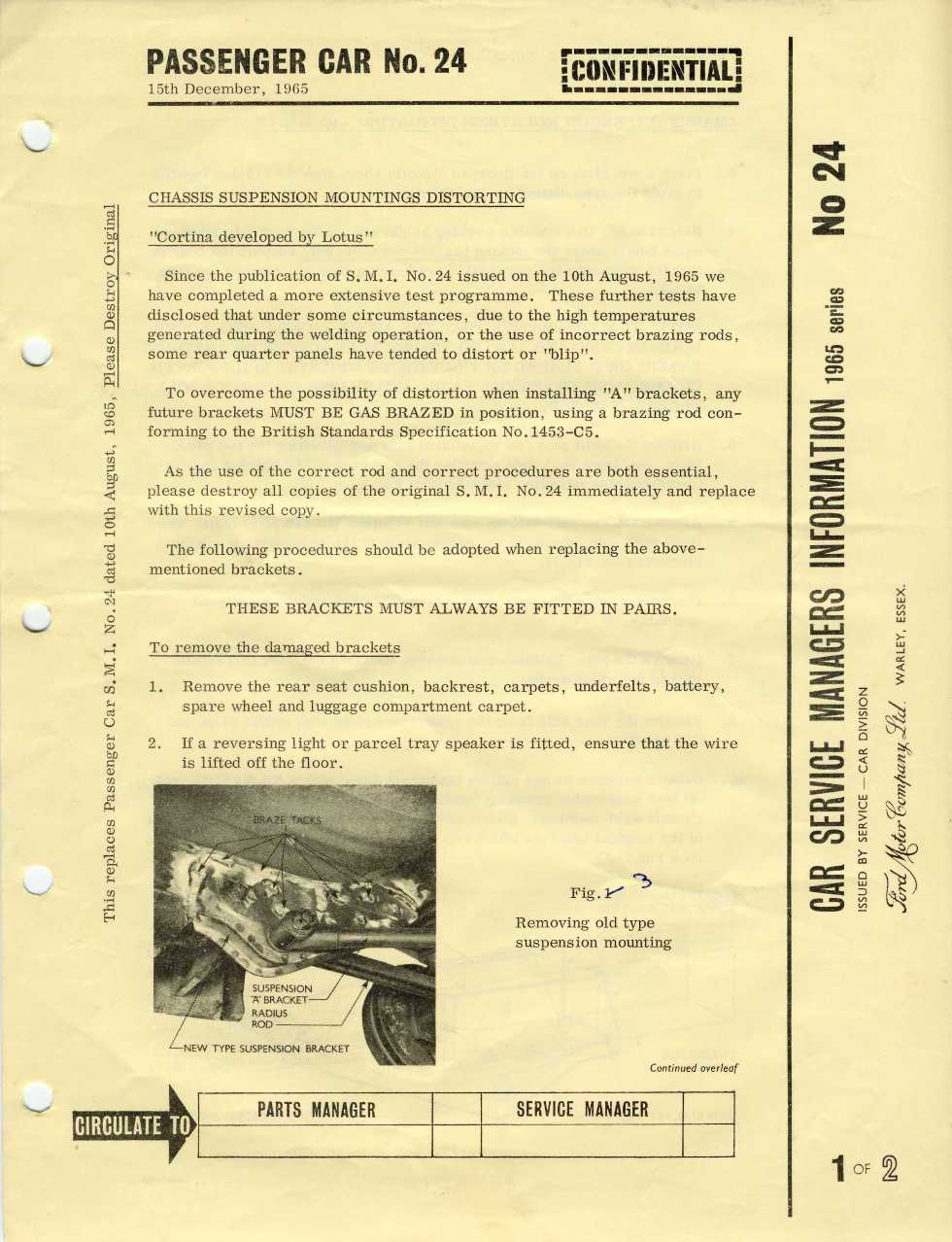

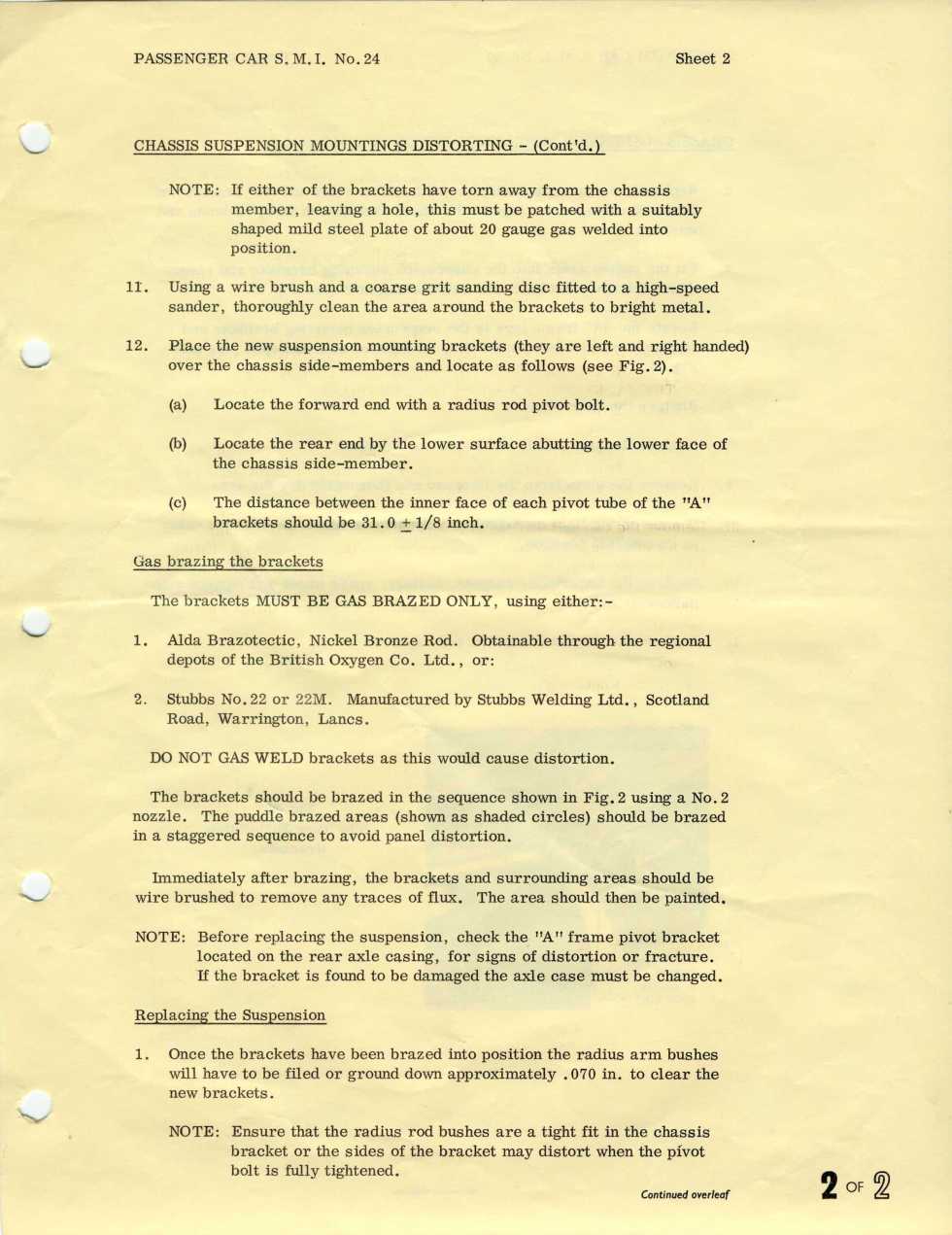

Chassis Suspension Mountings Distorting (15th Dec ’65)

651215-chassis-suspension-mount-change-1

651215-chassis-suspension-mount-change-2

651215-chassis-suspension-mount-change-3

651215-chassis-suspension-mount-change-4

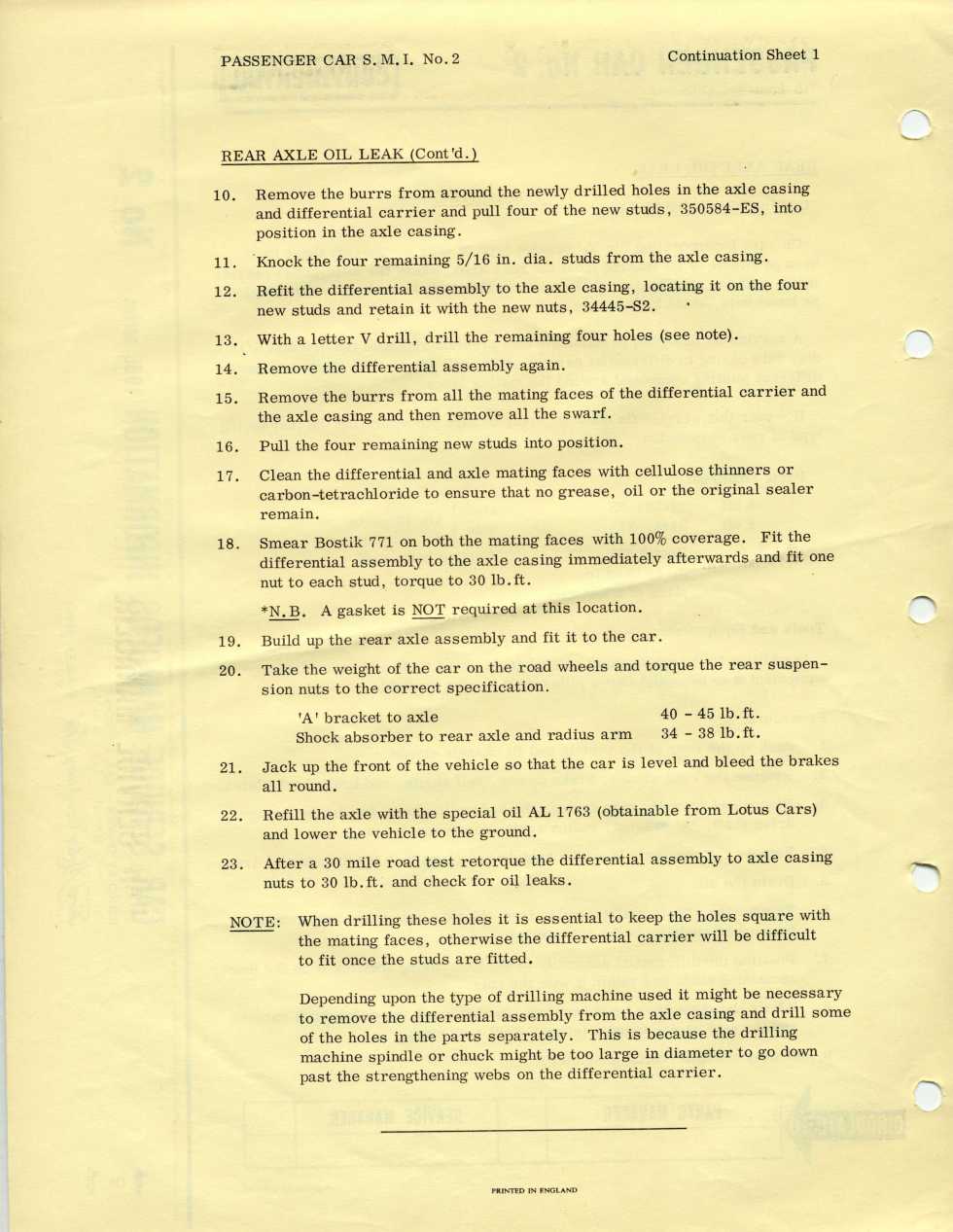

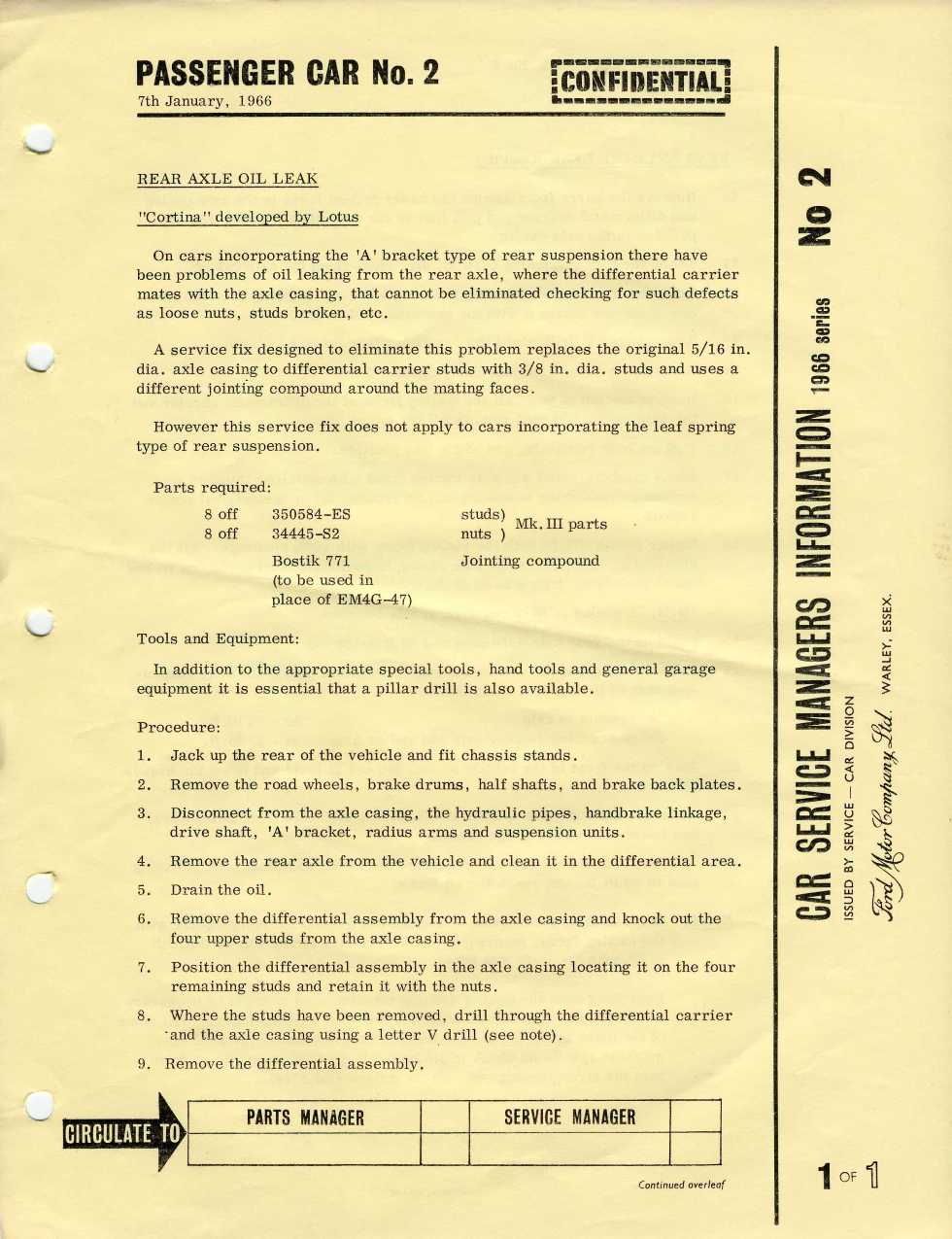

660107 Rear Axle Oil Leak (7th Jan ’66)

660107-rear-axle-oil-leak-1

660107-rear-axle-oil-leak-2

Chassis Suspension Mountings Distorting (11th Jan ’66)

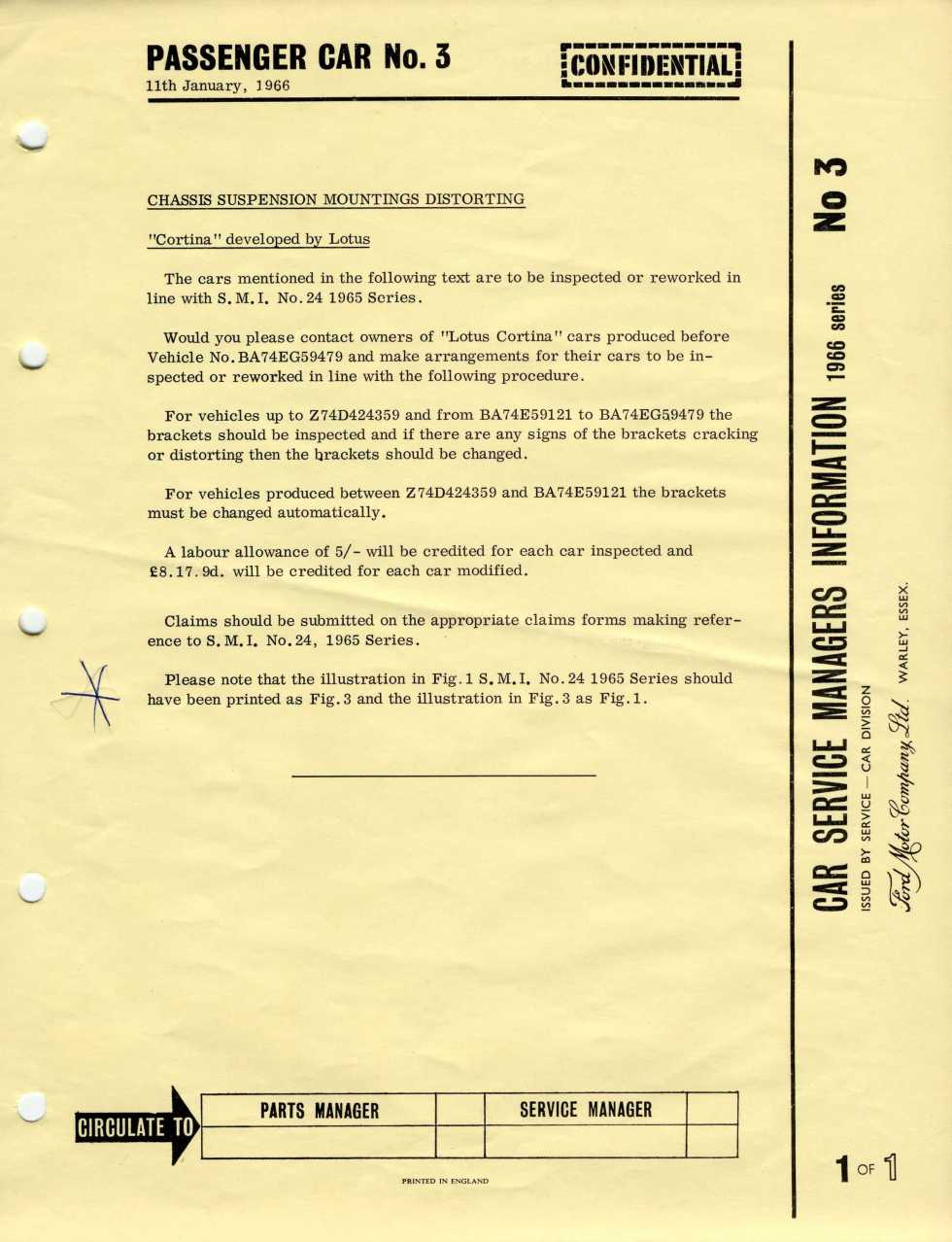

660111-chassis-suspension-mount-change
